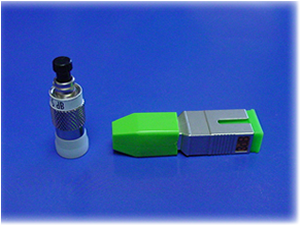

PlugType Fixed Attenuator( FC SC LC ST )
Name:

PlugType Fixed Attenuator( FC SC LC ST )

Class:
Attenuator / VOA
Type:
PlugType Fixed Attenuator
PlugType Fixed Attenuator( FC SC LC ST ) Specification

fiberw - Company  Profile-2010
 fixed attenuator

features   applications
  • high precision attenuation(0.5db for p grade)
  • low wavelengh dependency (0.5 dbtyp. at 10db, 141480~1620nm)
  • wide pgr-326 end face geometry
  • high power durabilitry

  • catv
  • high power networks

performance specifications

parameter p grade a grade

connector type

fc,sc,lc

fc,sc,lc

polishing type

pc,apc
pc,apc

attenuation level

1~9db( 0.5db);10~20db( 5%)
1~9db( 1.0db);10~20db( 10%)

attenuation tolerance

0.5db(1~10db); 5%(11~20db)
1.0db(1~10db); 10%(11~20db)

back reflection

< -50db(pc); < -60db(apc)
< -50db(pc); < -60db(apc)

polarization dependent loss (db)

< -0.5db; < -0.1db(typ.)

< -0.5db; < -0.1db(typ.)

operating temperature (c)

-20 ~ +70

storage temperature (c)

-40 ~ +80

inspection data

attenuation, br

specifications may change without notice

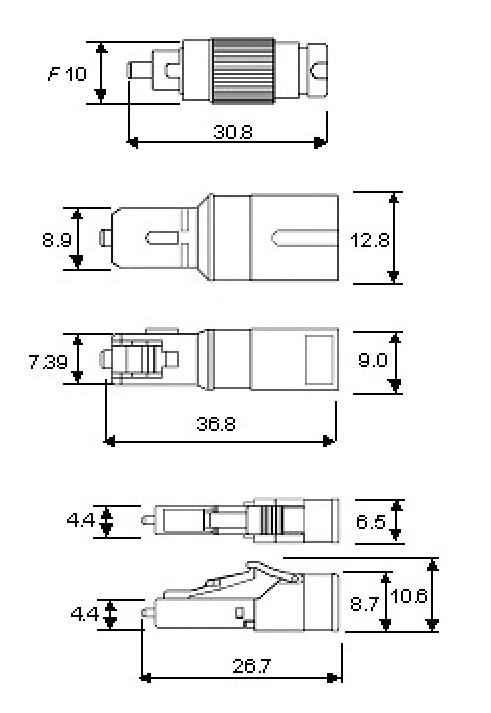

dimensions (mm)

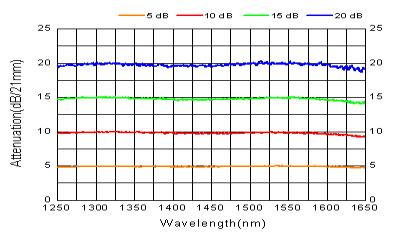

attenuation vs. wavelength
ordering information
at
connector type
attenuation
pollshing type
grade
fc
sc
lc
01=1db
02=2db
20=20db
pc=upc
ap=apc
p=p grade
a=a grade
