Switch (Multimode Mexhanical 1x2 Latching or Non Latching) (Best)

features	applications
unmatched low cost low insertion loss high channel isolation highly stable and reliable epoxy-free optical path latching or non-latching	configurable optical add/drop optical signal routing optical network protectioni/restoration transmitter and receiver protection network test system instrumentation

fiberw mms series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. this is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. the mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. the mms fiberoptic switches are true switching solutions for optical networking applications.

performance specifications

parameter	specification
operating wavelength (nm)	850, 1310, or 1550 �� 40	850/1310, 850/1550, 1310/1550
insertion loss (db)	<0.8 (p grade), <1.0 (a grade)	<1.0 (p grade),<1.2 (a grade)
wavelength dependent loss (wdl) (db)	<0.25	<0.30
polarization dependent loss (pdl) (db)	<0.05
cross talk (db)	>35
return loss (db)	>35
switching speed (ms)	<10 (typ.4)
operating voltage (v)	5
power handling (mw)	500
durability (cycles)	10 million
operating temperature (��c)	0 ~ +70
storage temperature (��c)	-40 ~ +85
dimensions (lxwxh) (mm)	32.76x12.6x11.0(or custom size)

electrical pin configuration:

optical path		port1 to port2		port1 to port3
electric drive	non latching	pin1	pin10
	latching	pin1	pin5	pin6	pin10
		v+	gnd	gnd	v+
sensor status	non latching and latching	pin2-3, pin8-9 open		pin2-3, pin8-9 close
		pin3-4, pin7-8 close		pin3-4, pin7-8 open

specifications may change without notice

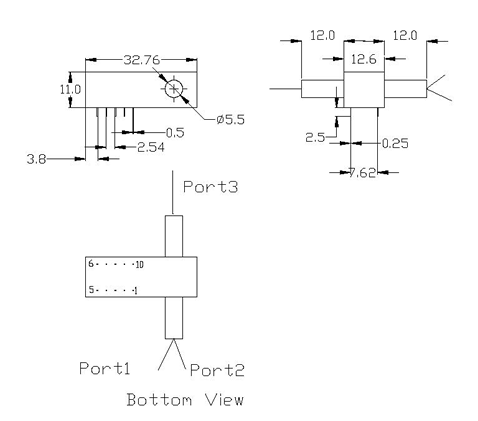

dimensions

ordering information

mms

option

operating wavelength

port

grade

fiber type

pigtail style

in/out connector

l=latching
n=non-latching

13=1310 ��40nm
15=1550��40nm
85=850 ��40nm
35=1310/1550nm
38=1310/850nm
58=1550/850nm

0102=1x2

p = p grade
a = a grade

1 = 50/125 multi-mode
2 = 62.5/125 multi-mode

1=bare fiber
2=900um jacket

0=none
1=fc/apc
2=fc/pc
3=sc/apc
4=sc/pc
5=st
6=lc
