Name:

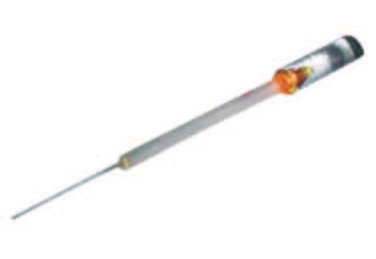

Single Fiber Pigtail
Class:
Fiber Optic Pigtail
Type:
Single Fiber Pigtail
Single Fiber Pigtail Specification
features
applications
low insertion loss
low back reflection
high environmental stability
fiberoptic lab use
collimator assembly
wdm switches
circulator/hybrid components
performance specifications
parameter
grade a
ar coating
1310+30nm, 1550+30nm or 1310/1550+30nm, 980/1550+30nm or custom wavelength
angle polish
6¡ã, 8¡ã, 9¡ã, 11¡ã or any other degree
typical reflectance
0.15%
maximum reflectance
0.25%
return loss (typ.) (db)
65
return loss (min.) (db)
60
operating temperature (¡ã c)
-20 ~ +75
storage temperature (¡ã c)
-40 ~ +85
dimension
1.8(od)x 5~5.5(l)mm; 1.25(od)x10(l)mm, 1.0(od)x 5~6(l)mm, or custom size
fiber type
250um bare fiber or 900um tight buffer or 250um bare fiber with protective loose tube
ordering information
type
pigtail
wavelength
grade
pigtail style
fiber length
position
angle polish
1=single fiber
p=pigtail
00=no ar coating 13=1310nm 14=1480nm 15=1550nm 35=1310/1550nm 95=980/1550nm
p=premium w=wideband(+100nm)
b=250um bare ffiber
h=900um jacket
15=1.5m 18=1.8m ........ 30=3.0m
0=single fiber
1=vertical(2 fiber vertical to the 8d angle)
2=horizontal (2 fiber horizontal to the 8d angle)
0=flat 6=6d 8=8d s=special
remark : pause production
**
