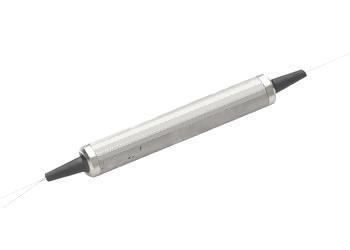

PM  film WDM -980 1480 1550nm
Name:

PM film WDM -980 1480 1550nm

Class:
CWDM / MWDM
Type:
PM film WDM -980 1480 1550nm
PM film WDM -980 1480 1550nm Specification

fiberw - Company  Profile-2010
features applications
  • wide operating wavelength range
  • low insertin loss
  • ultra flat wide passband
  • high channel isolation
  • high reliability and stability
  • epoxy free optical path
  • system monitoring
  • wdm system
  • transmitters and fiberlasers
  • fiberoptic amplifiers
  • fiberoptic instruments
performance specifications
parameter specifications
pass channel wavelength range(nm) 1520 ~ 1600/1440~1490
reflect channel wavelength range(nm) 965 ~ 1000/1440~1490
insertion loss (db) reflect channel < 0.8
pass channel < 1.1
insertion loss variation (db) < 0.3
isolation (db) reflect channel > 18
pass channel > 30
return loss (db) > 50
directivity (db) > 55
extinction ratio(db) > 20
operating temperature (?c) 0 ~ +65
storage temperature (?c) -40 ~ +85
power hundling (mw) 300
fiber type common/pass:1550 panda pm; reflect: hi1060
dimensions (mm) f5.5xl35(l38)*

*l38 for 900um jacket.



 ordering infomation
pmwdm

wavelength
pigtail style
fiber length
in/out connector


59=1550nm pass /980 ref 45=1480nm pass /1550 ref  other

1=bare fiber
2=900¦Ìm jacket

1=0.75 meter

0=none
1=fc/apc
2=fc/pc
3=sc/apc
4=sc/pc
5=st
6=lc

** You can click 'getOffer' or 'AddToCart' button or contact our sales@fiberw.com to get the formal offer document directly.
** If you are agent / OEM / middle trade, please copy the specification into word document from our website ,then send it to your clients.
