¡õ waterproofing layer providing strong water-resistance performance. ¡õ steel tape with pe outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable.
applicable fields
¡õ long-distance communication and lan
recommended layings methods
¡õ aerial
structure configurations
¡õ waterproofing layer between the steel tape and cable core. ¡õ double-sided pe corrugated steel tape with pe sheath ¡õ parallel double steel wire as strengthening member ¡õ note: we can design oval cross section and non-metallic structure on demand, e.g.:gyxtew,gyfxtw,gyfxtew.etc...
no water seepage for 3m samples in 1m water head for 24h
properties
light weight,low price,suitable for overhead,duct laying

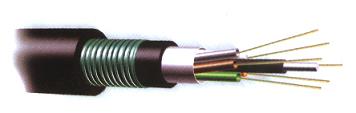

gyts loose tube optical cable
properties
¡õ armored steel tape providing maximum anti-pe outer sheath ¡õ air gun bullet resistant
applicable fields
¡õ long-distance communication and lan
recommended layings methods
¡õ aerial, duct
structure configurations
¡õ metallic strengthening member (phosphated steel wire) ¡õ double-sided pe corruyated steel tape-pe outer sheath
technical data
fiber range
cable outer diameter (mm)
cable weight (kg/km)
min.bending radius(mm)
allowable tinsion(n)
max.crush loading force (n/100mm)
static
dynamic
short term
long term
short term
long term
2-24
11.4
150
10times cable diameter
20times cable diameter
2000
1000
2000
1000
26-36
12.0
185
38-60
13.0
200
62-72
13.8
230
74-96
15.5
280
98-120
17.4
310
122-144
19.2
365
gyta53 loose tube optical cable
properties
¡õ armor in the form of longitudinally applied overlapping flat aluminum tape, over which an outer sheath of polyethylene is applied, providing an excellent moisture-barrier ¡õ double armors providing excellentanti-crush and rodent-proof properties
applicable fields
¡õ long-distance communication and lan ¡õ moisture-proof and rodent-proof
recommended layings methods
¡õ direct-burial
structure configurations
¡õ armor in the form of longitudinally applied overlapping flat aluminum tape. over which an outer sheath of polyethylene is applied. providing an excellent moisture-barrier ¡õ double armors providing excellentanti-crush and rodent-proof properties
technical data
fiber range
cable outer diameter (mm)
cable weight (kg/km)
min.bending radius(mm)
allowable tension (n)
max.crush loading force (n/100mm)
static
dynamic
short term
long term
short term
long term
2-24
14.9
245
12.5times cable diameter
25times cable diameter
4000
2000
4000
2000
26-36
15.5
280
38-60
16.4
300
62-72
17.3
335
74-96
19.0
400
98-120
21.0
440
122-144
22.8
505
gyfty loose tube optical cable
properties
¡õ non-metallic structure providing excellent anti-electromagnetism. ant thunder and anti-static performances.
applicable fields
¡õ long-distance telecom, lan in high-voltage area or access to telecom network ¡õ especially for power transmission system. excessive thunder areas and high electromagnetic interference.
recommended layings methods
¡õ high-voltage area, aerial
structure configurations
¡õ non-metallic strengthening member ¡õ reinforced with fiber glass or aramid yam ¡õ pe outer sheath ¡õ note: we can design any kind of structures according to environmental condition and transissioncapacity, e.g;gyfta, gyfxty, gyfdtza etc...
technical data
fiber range
cable outer diameter (mm)
cable weight (kg/km)
min. bending radius(mm)
allowable tension (n)
max.crush loading force (n/100mm)
static
dynamic
short term
long term
short term
long term
2-24
10.6
95
10times cable diameter
20times cable diameter
2000
1000
1000
500
26-36
11.0
105
38-60
12.0
125
62-72
13.0
145
74-96
14.7
175
98-120
16.4
220
122-144
18.4
270
unit breakout cables
¡¡
features
¡õ unit breakout structure makes up to 84 fiber count cables. ¡õ best design for single-mode and multimode fiber hybrid cables. ¡õ ¦Õ900um tight buffer fiber, semi-tight buffer fiber also available. ¡õ sz stranded cable core for flexibility, but superior high mechanical performance. ¡õ pvc or low smoke zero halogen (lszh) is available as jacket material. ¡õ color coding complied with tia/eia-598-b.
applications
¡õ ideal for high density cabling system in building, trunking and lan distribution. ¡õ suitable for indoor and outdoor use, act as intrabuilding backbone. ¡õ can be terminated with various types of connectors.
mechanical specifications
fiber count
units
fibers in unit
diameter (mm)
weight (kg/km)
maximum tensile load(n)
minimum bend radius (mm)
installing
operating
installing
operating
16
4
4
18.5
335
1400
470
10 times of outer diameter
15 times of outer diameter
28
7
22.0
465
2450
800
48
12
28.0
720
4200
1400
24
4
6
21.0
450
2000
660
42
7
25.5
635
3500
1100
72
12
33.0
980
6000
2000
48
4
12
28.5
810
3200
1000
84
7
34.5
1150
3600
1800
all dielectric self-supporting optical cable
available range
¡õ new and old electric power line. to be equipped at the same tower. ¡õ large-span situation. ¡õ strong electric field, much thunder field.
characteristic
¡õ small diameter, light weight, the span cam reach to 1500m, with a low additional load to the tower. ¡õ strong anti-pull performance, more than 90kn. ¡õ non-metallic structure, good insulated performance, thunder-proof. ¡õ the equality sparn and good performance when meeting an emergency. ¡õ good performance of anti-gun. ¡õ good performance of anti-erode ¡õ suitable for bad climate. ¡õ can work without electric stop.
structure characteristic
¡õ loose tube and non-metallic strengthen ¡õ high flexible ¡õ can work under the environment at electric fieldsd¡Ü25kv/m.
notes
¡õ we can manufacture detailed adss cable according to the requirement.
**
