LED/SLED Broadband High Stable Light Source
Class:
Other Active Components
Type:
Light Source
LED/SLED Broadband High Stable Light Source Specification
applications
optical fiber sensing
optical fiber passive component spectrum testing
optical fiber grating, dwdm, filter testing
optical fiber measurement equipments
features
slected wavelength
high stability
broadband light sourceremark
specifications
parameters
1310 led
1550 led
1300 sled
1480 sled
1550 sled
1620 sled
1650 sled
central wavelength (nm)
131020
155020
130020
148020
155020
162020
165020
-3db spectrum width (nm
35
35
35
40
40
40
40
output power (uw)
20
10
1000
500
1000
1000
500
spectrum density stability1
ܡ0.05db/15 min
short term stability1
ܡ0.01db/15 min
long term stability2
ܡ0.03db/8 hour
operating mode
cw,internal modulate, external modulate
fiber pigtail
single mode smf-28
output connector
fc/pc, fc/upc or fc/apc
operating temperature ()
0~40
storage temperature ()
-20~70
power supply
ac110/220v10%,50hz,20w
maximal power consumption
10w
dimensions (lwh mm)
907019, 32022090
remarkstability is tested at room temperature 252 after pre-heating 30 minutes.
1.test condition: fixed temperature, cw.
2. test condition: temperature variation 2, cw.

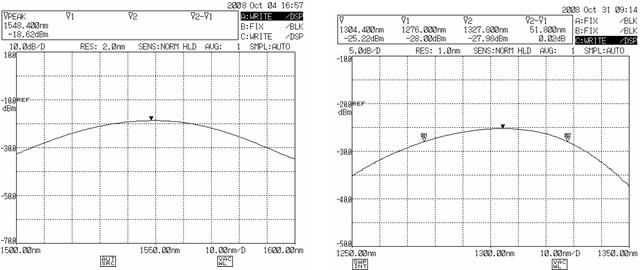

typical spectrum
1550nm spectrum 1300nm spectrum
ordering information
os
type
type of laser diode
operating wavelength
power
connector
m=module d=desk-top
d=dfb-ld l=led f=fp p=pump s=sled m-multi-mode
131=1310nm 155=1550nm 1315=1310 & 1550nm etc
00=0dbm 10=10dbm 20=20dbm
fc/upc fc/apc
**
