indoor cables can be successfully used for pach cord / connector / jumper fiber with 9/125¦Ìm fiber,50/125¦Ìm fiber,62.5/125¦Ìm fiber,100/140¦Ìm fiber,single fiber,multimode fiber.
optical fiber cable workshop pictures:

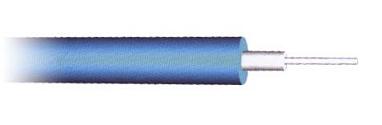

simplex cables
tight buffer fiber strengthened by aramid yarn with a flexible outer jacket.
features
¡õ ¦Õ900um or ¦Õ600um tight buffer fiber, semi-tight buffer fiber also available. ¡õ nominal outer jacket diameter from 2.0mm to 2.9mm. ¡õ pvc or low smoke zero halogen (lszh) is available as jacket material. ¡õ color coding complied with tia/eia-598-b.
applications
¡õ ideal for direct terminated with various types of connectors. ¡õ rugged construction for indoor installations.
mechanical specifications
item no.
diameter (mm)
weight (kg/km)
maximum tensile load(n)
minimum bend radius (mm)
operating temperature (¡æ)
installing
operating
a1-b1.1-zv-29
2.9
8
200
100
30
-20~+60
a1-b1.1-zy-24
2.4
4.5
80
40
24
-20~+60
a1-b1.1-zv-20
2.0
4.5
80
40
20
-20~+60
¡¡
duplex cables
¡¡
figure 8 zip cord construction consists of 2 single-fiber cable.
features
¡õ ¦Õ900um or ¦Õ600um tight buffer fiber, semi-tight buffer fiber also available. ¡õ nominal outer jacket diameter from 2.0mm to 2.9mm. ¡õ pvc or low smoke zero halogen (lszh) is available as jacket material. ¡õ color coding complied with tia/eia-598-b.
applications
¡õ ideal for direct terminated with various types of connectors. ¡õ rugged construction for indoor installations.
mechanical specifications
item no.
diameter (mm)
weight (kg/km)
maximum tensile
minimum bend radius (mm)
operating temperature (¡æ)
installing
operating
a1-b1a-zy-28
2.8¡Á5.7
16
400
200
30
-20~+60
a1-b1a-zy-28
2.0¡Á4.1
9
150
80
30
-20~+60
a1-b1a-zy-28
1.8¡Á3.7
7.5
150
80
30
-20~+60
a1-b1a-zy-28
1.6¡Á3.3
6
150
80
30
-20~+60
tight buffer, semi-light buffer fiber
optical fiber with tight buffer, or semi-tight buffer.
features
¡õ tight buffer fiber in ¦Õ900 um or ¦Õ600um outer diameter or semi-tight bight buffer fiber in ¦Õ900um outer diameter. ¡õ polyester elastomer, lszh, pvc, modified polypropylene or nylon-12 are available as buffer material. ¡õ semi-tight buffer fiber can be easily stripped off 1 meter long. ¡õ color coding complied with tia/eia-598-b.
applications
¡õ for use of producing various types premises fiber optic cable. ¡õ can be terminated with standard connectors. ¡õ specialized tight buffer fiber is ideal for fiber sensor systems.
mechanical specifications
item no.
diameter (mm)
weight (kg/km)
maximum tensile load(n)
minimum bend radius (mm)
operating temperature (¡æ)
installing
operating
t-b1.1-zv-06
0.6
0.4
4
1.5
30
-20~+60
t-b1.1-h-09
0.9
0.9
6
3
30
-45~+85
t-b1.1-zy-09
0.9
0.9
6
3
30
-20~+60
t-b1.1-n-09
0.9
0.9
6
3
30
-45~+85
strengthened tight buffer fiber
optical fiber surrounded by aramid strength member, and a pvc tight buffer.
features and applications
¡õ enhanced tensile strength by aramid surrounding bare fiber. ¡õ pvc tight buffer in ¦Õ900um outer diameter. ¡õ color coding complied with tia/eia-598-b. ¡õ ideal for use in optical device, equipment which requires high tensile performance.
mechanical specifications
item no.
diameter (mm)
weight (kg/km)
maximum tensile
minimum bend radius (mm)
operating temperature (¡æ)
installing
operating
te-b1.1-zv-09
0.9
0.9
10
5
30
-20~+60
¡¡
fiber protecting tube
features and applications
¡õ ¦Õ900um tube can use pvc, modified pp, polyester elastomer materials. ¡õ also available ¦Õ900um tube surrounding by aramid yarn and ¦Õ2.9mm or ¦Õ2.0mm jacket. ¡õ color coding complied with tia/eia-598-b ¡õ for use in optical communication apparatus, equipment, to protect bare fiber.
mechanical specifications
item no.
diameter (mm)
tube material
heat shrink rate
operating temperature(¡æ)
h-p-09
0.9
mpp
2.5%
-40~+70
h-h-09
0.9
elastomer
2.5%
-40~+85
h-h-09-zy-20
2.0
lszh jacket, elastomer tube
2.5%
-20~+60
h-p-09-zv-29
2.9
pvc jacket, mpp tube
2.5%
-20~+60
distribution cables
distribution cable consists up to 12 tight buffer fiber strengthened by aramid yarn, and protected by an outer jacket.
features
¡õ small form factor, high performance with lower cost. ¡õ ¦Õ900um tight buffer fiber, semi-tight buffer fiber also available. ¡õ sz stranded cable core for better transmission performance. ¡õ pvc or low smoke zero halogen (lszh) is available as jacket material. ¡õ color coding complied with tia/eia-598-b.
applications
¡õ ideal for installation in indoor, lan, and distribution networks. ¡õ can be terminated with various types of connectors.
mechanical specifications
item no.
diameter (mm)
weight (kg/km)
maximum tensile load(n)
minimum bend radius (mm)
installing
operating
installing
operating
2
4.2
24
400
130
10 times of outer diameter
15 times of outer diameter
4
4.2
24
400
130
6
4.8
30
450
150
8
5.4
40
500
170
12
6.0
45
600
200
sensing cables
elastomer tight buffer fiber strengthened by aramid yarn with a flexible elastomer outer jacket.
features
¡õ ¦Õ900um elastomer tight buffer fiber, and elastomer outer jacket for a wide range temperature applications. ¡õ polyester elastomer, polyurethane or low smoke zero halogen (lszh) is also available as jacket material. ¡õ color coding complied with tia/eia-598-b
applications
¡õ ideal for fiber optic sensor network for detecting temperature and strain. ¡õ compatible with various standard connectors. ¡õ rugged construction for wide range temperature indoor installation.
mechanical specifications
item no.
diameter (mm)
weight (kg/km)
maximum tensile
minimum bend radius (mm)
operating temperature (¡æ)
installing
operating
installing
operating
a1-b1.1-h-20
2.0
4.5
80
40
30
-55~+125
-45~+85
a1-b1.1-zu-29
2.9
8
200
100
30
-20~+60
ribbon cables
standard color coded ribbon fiber strengthened by aramid yarn protected by a flexible outer jeacket.
features
¡õ up to 12 fiber count. ¡õ small form factor, high density. ¡õ pvc or low smoke zero halogen (lszh) is available as jacket material. ¡õ ribbon fiber color coding complied with tia/eia-598-b
applications
¡õ ideal for terminated with mt and mtp connectors ¡õ for indoor installations.
**
