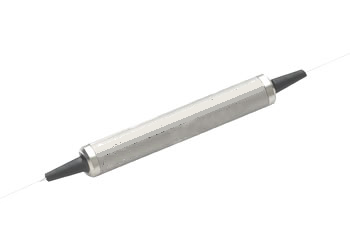

IPBC IPBS ( Isolator & Polarization Beam Combiner Splitter Hybrid )
Class:
Polarization Maintaining(PM)
Type:
Isolator/Polarization Beam Combiner/Splitter Hybrid
Isolator/Polarization Beam Combiner/Splitter Hybrid Specification
features applications
high isolation
low insertion loss
high extinction ratio
compact in-line package
high stability and reliability
epoxy free optical path
high power edfa
raman amplifier
laboratory
performance specifications
parameter
single stage
dual stage
center wavelength (nm)
1060 , 1310, 1480, or 1550
operating wavelength range(nm)
¡À 20
typical isolation (db)
40
51
minimum isolation (db)
30
42
typical insertion loss (db)
0.45
0.55
maximum insertion loss (db)
0.7
0.8
min. extinction ratio(for splitter only) (db)
20
18
min. return loss(db)
50
direction of incident polarization
slow axis
operating temperature (¡ã c)
-5 ~ + 70
storage temperature (¡ã c)
-40 ~ +85
fiber type
pm on port1 and 2, smf-28 or pm on port3
max.tensile load(n)
5
package dimension (mm)
f5.5xl35
max. optical power(mw)
500
note:
1. the pm fiber and the connector key are aligned to the slow axis.
2. for devices with connectors, insertion loss will be 0.3db higher, rl will be 5db lower, and er will be 2db lower.
ordering information
ipb
configuration
isolator type
wavelength
grade
fiber type
fiber length
in/out connector
s=splitter
s=single stage
13=1310nm
p=premium
1=bare fiber
1=0.75m
0=none
**
