introduction:
2x2 latching optical switch (osw) provides channel selection between a pair of input fibers and output fibers. it features low insertion loss, low driving power, small size, and high switching speed. the switch is a compact device suitable for a wide range of applications; for example, optical networking system protection, measurement system, route diversity, reconfigurable add/drop module. the latching mechanism ensures the optical switch status remains in the selected state during power failure.
performance specifications
|
optical path |
pin status |
|
control pin |
monitor pin |
|
1 |
6 |
7 |
12 |
3-4 |
4-5 |
8-9 |
9-10 |
|
transmission 1-->3
2-->4 |
+5vdc |
gnd |
-- |
-- |
open |
closed |
closed |
open |
|
cross 1-->4
2-->3 |
-- |
-- |
gnd |
+5vdc |
closed |
open |
open |
closed |
table i pin status
electrical characteristics:
|
parameter |
specification |
|
coil resistance ( ) |
125 (¡À10%) |
|
operating current (ma), typ. |
40.0 (¡À10%) |
|
operating voltage (v), typ. |
5.0 |
|
operating voltage (v), range |
4.5 ~ 5.5 |
|
power consumption (mw), typ.* |
200 (¡À10%) |
* when +5v dc signal is applied to only one coil.
optical characteristics:
|
parameter |
specification |
|
s.m. fiber |
m.m. fiber |
|
wavelength range (nm) |
1280 ~ 1340 |
850/1300
|
|
1520 ~ 1625 |
|
insertion loss (db) |
typical |
0.6 |
0.6 |
|
max |
1.0 |
1.0 |
|
pdl (db) |
¨Q0.1 |
¾ |
|
wdl(db) |
¨Q0.3 |
¾ |
|
return loss (db) |
¨Q-50 |
¾ |
|
switching time (ms) |
¨Q 10 |
10 |
|
crosstalk (db) |
¨Q-60 |
|
repeatability (db) |
¨Q0.1 |
mechanical & environmental:
|
parameter |
specification |
|
s.m./m.m. fiber |
|
operating temperature range (¡æ) |
-5 ~ 70 |
|
storage temperature range (¡æ) |
-40 ~ 70 |
|
hudimity |
5 ~ 85 % rh |
|
durability (cycles) |
£¾ 10 |
|
dimension (hmm¡Áwmm¡Álmm) |
8.9¡Á18¡Á39.5 |
|
weight (g) |
£¼ 25 |
*all above are general specifications , except custom requirement .

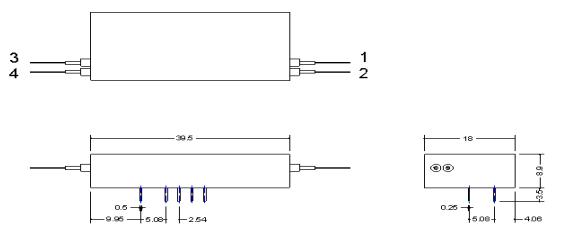

mechanical dimensions:
note:all dimensions in (mm)tolerances unless otherwise specified ¡À 0.3 mm
pin description:
figure 1 is the bottom view of the optical switch illustrates pin configuration. table i provides the description of the pin status. both control and monitor pins are provided.
fig. 1. pin configuration of 2x2 latching optical switch (bottom view) |
ordering information
|
|
type |
wavelength |
configuration |
package |
fiber
type |
fiber length |
connector |
|
|
22=2¦Ö2 |
3=1310
5=1550
s=special
85=850/1310 |
1=standard
s=special |
1=standard
s=special |
1=smf-28 250um
2=smf-28 900um
3=50/125 250um
4=62.5/125 250um
5=50/125 900um
6=62.5/125 900um |
1=0.25m
2=0.5m
3=1.0m
4=special |
none=1
fc/pc=2
fc/apc=3
sc/pc=4
sc/apc=5
st/pc=6
lc=7
s=special |
